H5 Integration Guide

Overview

When you need to embed our pages (such as image recognition report pages), it's necessary to correctly implement a signature-based authentication mechanism to ensure the security of API calls. Please read the following sections carefully to understand the integration process.

Use Cases

• Using hybrid development frameworks like React Native or Flutter to integrate our H5 pages through WebView components (suitable for cross-platform app development)
• Using native Android or iOS development to load our H5 pages through system WebView (suitable for native app development)
• Embedding our H5 pages dynamically through <iframe> or <script> in your own H5 pages (suitable for pure web applications)

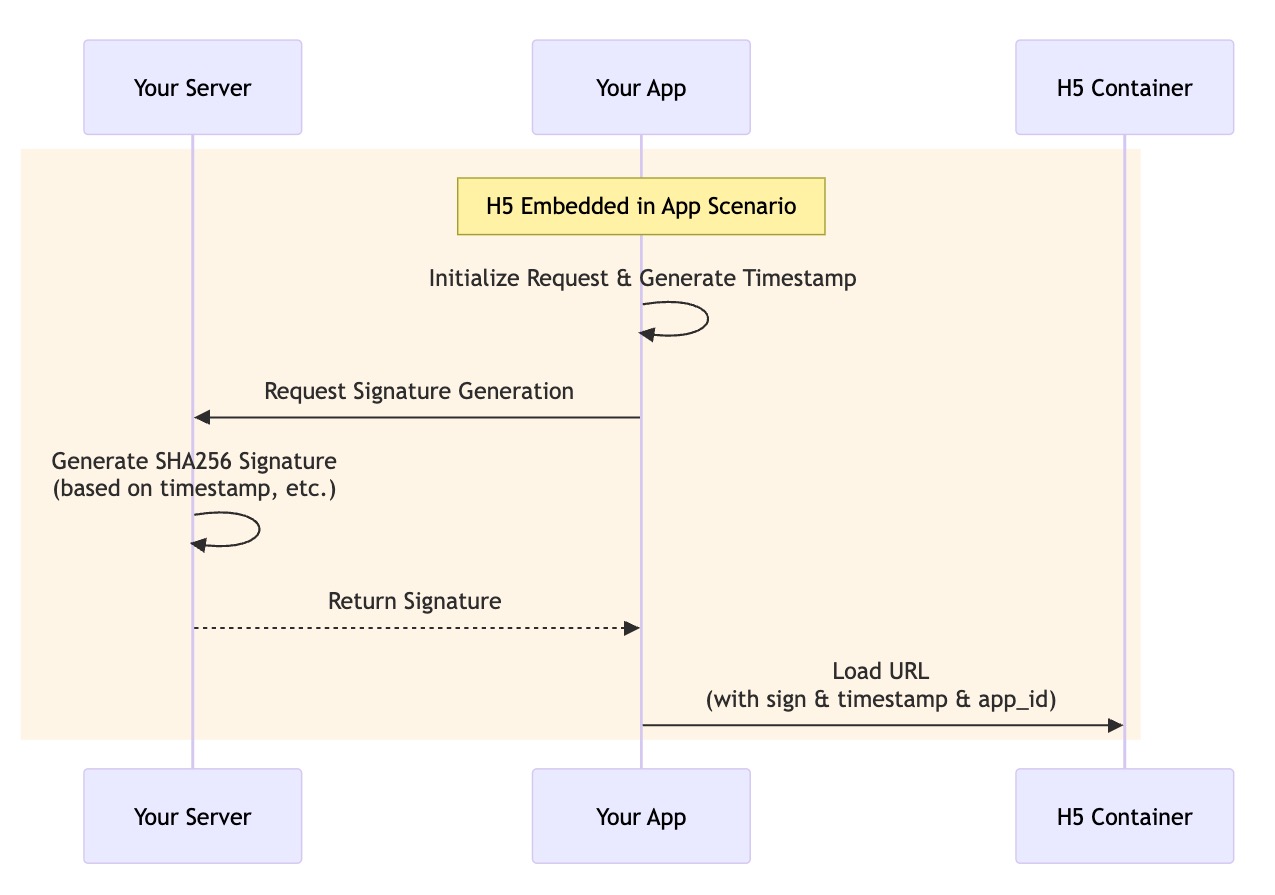

Overall Flow

Taking App embedded H5 as an example:

Request Parameters

Parameter	Type	Required	Description
sign	string	Yes	Signature calculated using APPID and APPSECRET for symmetric encryption signature calculation
appId	string	Yes	The APPID value used by the caller to invoke the API
timestamp	long	Yes	Request timestamp in seconds, timezone must be set to UTC
Other params	...	No	Additional parameters based on specific business scenarios

Note:

• timestamp is the current timestamp of the request. Do not modify the timestamp value arbitrarily. The server will determine if the request has expired based on whether the timestamp value exceeds 60s from the current time, which helps prevent potential replay attacks.
• sign should be generated on the server side to ensure the secret key is not exposed to the client.
• The value in parameters should be a URL-encoded string. For example, https://google.com is encoded as https%3A%2F%2Fgoogle.com

Signature Calculation

The signature calculation formula is as follows:

Signature = Base64(HMAC-SHA256(APPSECRET, StringToSign))

Here, StringToSign refers to the signature string that needs to be constructed, with the following format:

• Split all request parameters into key=value pairs.
• Sort the keys in ascending lexicographical order (a-z), then concatenate them into a single string using &, for example: appId=85206f97-2f4f-4b6e-8830-f3f4ec6fd6ae&language=zh_CN&taskId=8127919&timestamp=1745923427

Note: The value in parameters should be a URL-encoded string. For example, https://google.com should be encoded as https%3A%2F%2Fgoogle.com.

Example

Suppose we have an APPID and APPSECRET pair:

{
    "app_id": "85206f97-2f4f-4b6e-8830-f3f4ec6fd6ae",
    "app_secret": "c6ae8924a68a5d839947a7885894dfe4"
}

Request Example

H5 URL is http://127.0.0.1:8080/report

1. Business parameters:

{
    "language": "zh_CN",
    "taskId": "8127919"
}

2. Generated StringToSign:

appId=85206f97-2f4f-4b6e-8830-f3f4ec6fd6ae&language=zh_CN&taskId=8127919&timestamp=1745923427

3. Calculate Signature:

Calculate using Base64(HMAC-SHA256(APPSECRET, StringToSign))
Signature = vuINPfgYzMKuR4C8oIvWchE0cJjIWSUN38nKEXU7ico=

4. Final URL:

http://127.0.0.1:8080/report?language=zh_CN&taskId=8127919&timestamp=1745923427&appId=85206f97-2f4f-4b6e-8830-f3f4ec6fd6ae&sign=vuINPfgYzMKuR4C8oIvWchE0cJjIWSUN38nKEXU7ico=
